Advanced radar technology +
state of the art software =
actionable information
All Systems
Aviation Safety
Wind Farms
Drone Detection
Robin Radar Systems
Laan van Waalhaven 355
2497 GM
The Hague
The Netherlands
T +31(0)8 8700 8700
info@robinradar.com
Reg: 27371517
VAT: NL822016321B01
2D Lite |
| Pulse |
| S-Band |
| Real-time position and track in 2D |
| 360-degree coverage |
| 30kW power output |
| 1.3s track update rate |
| 8km instrumented range |
3D Fixed |
| Pulse |
| S-Band + X-Band |
| Real-time position and track in (semi) 3D – in a fixed direction |
| 360-degree coverage |
| 60kW power output (S-Band) 25kW power output (X-Band) |
| 1.3s track update rate (Horizontal) - 1.3s track update rate (Vertical) |
| 10km instrumented range (Horizontal) 6km instrumented range (Vertical) |
3D Flex |
| Pulse + FMCW |
| S-Band + X-Band |
| Real-time position and track in (semi) 3D – in a configurable direction |
| 360-degree coverage |
| 60kW power output (S-Band) 4W power output (X-Band) |
| 1.3s track update rate (Horizontal) - 3.0s track update rate (Vertical) |
| 10km instrumented range (Horizontal) - 6km instrumented rage (Vertical) |

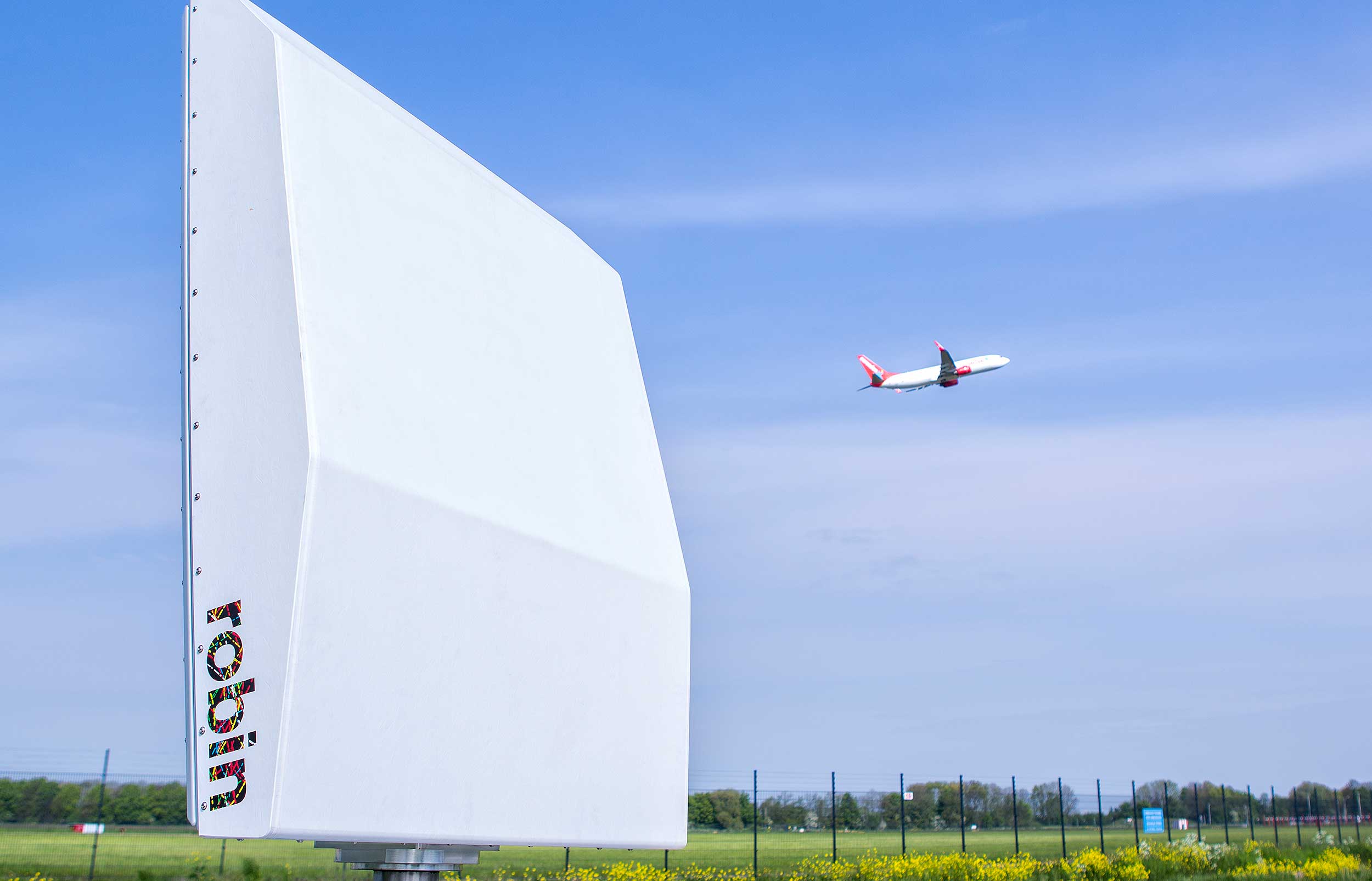

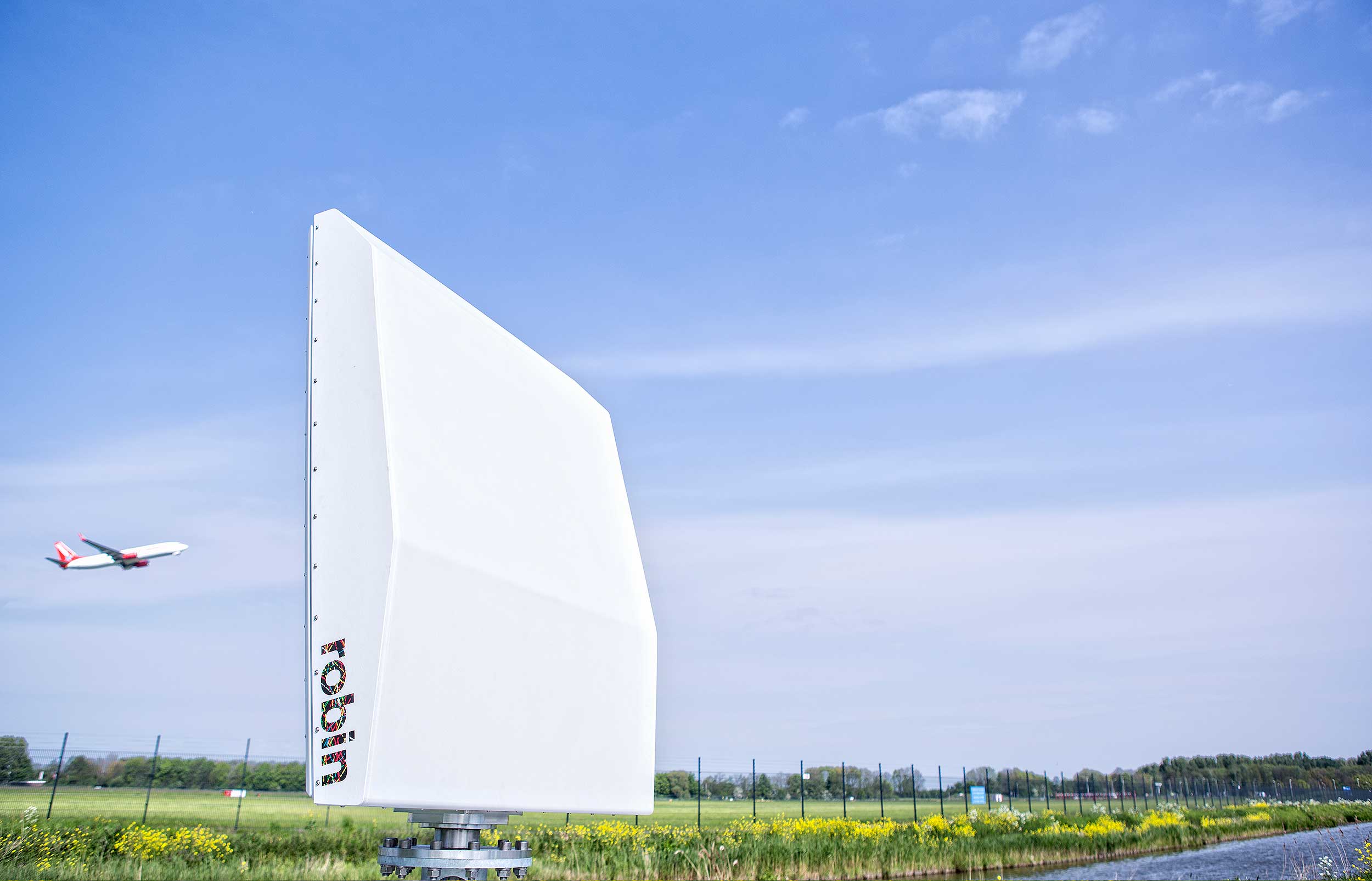

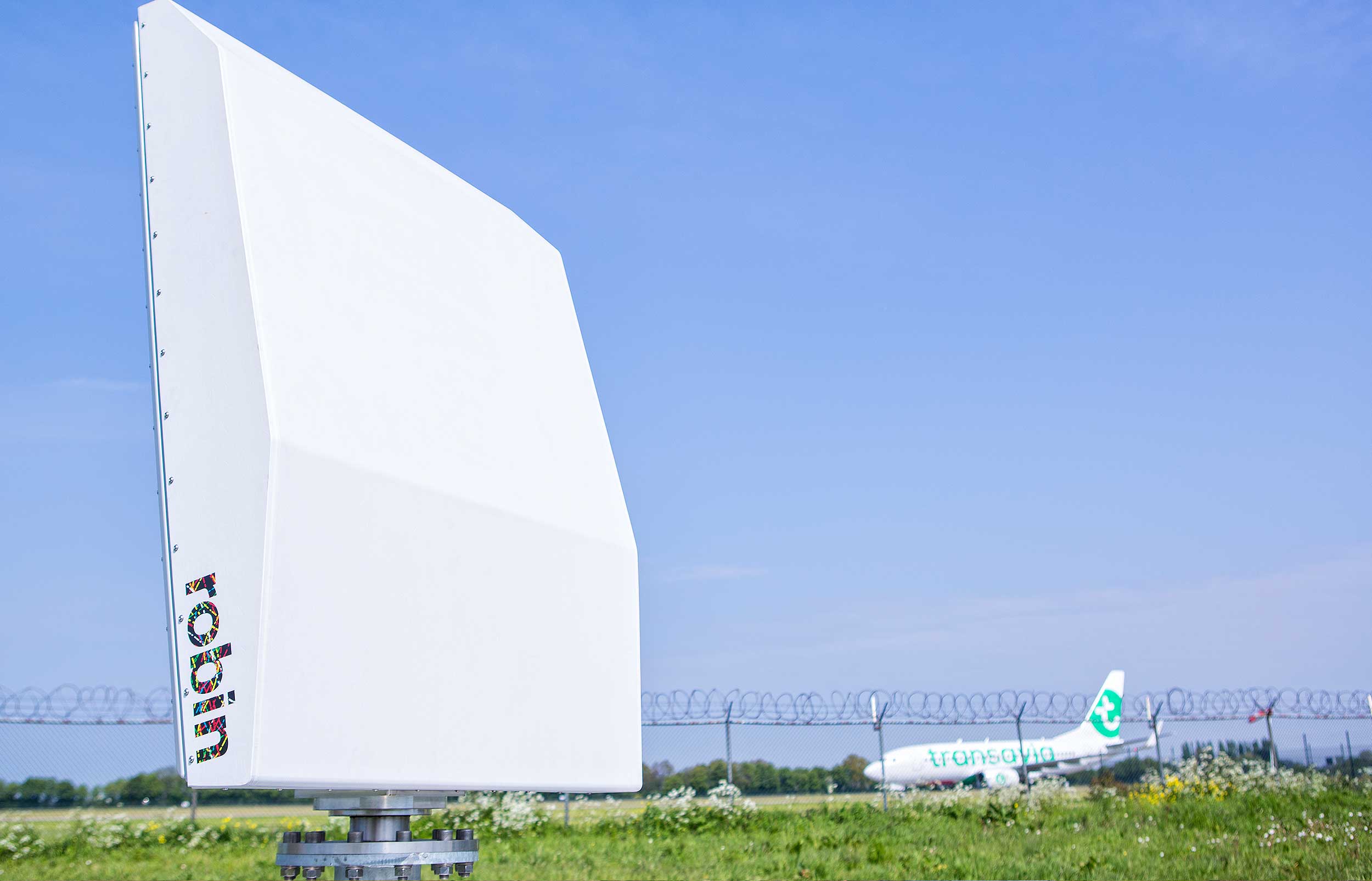

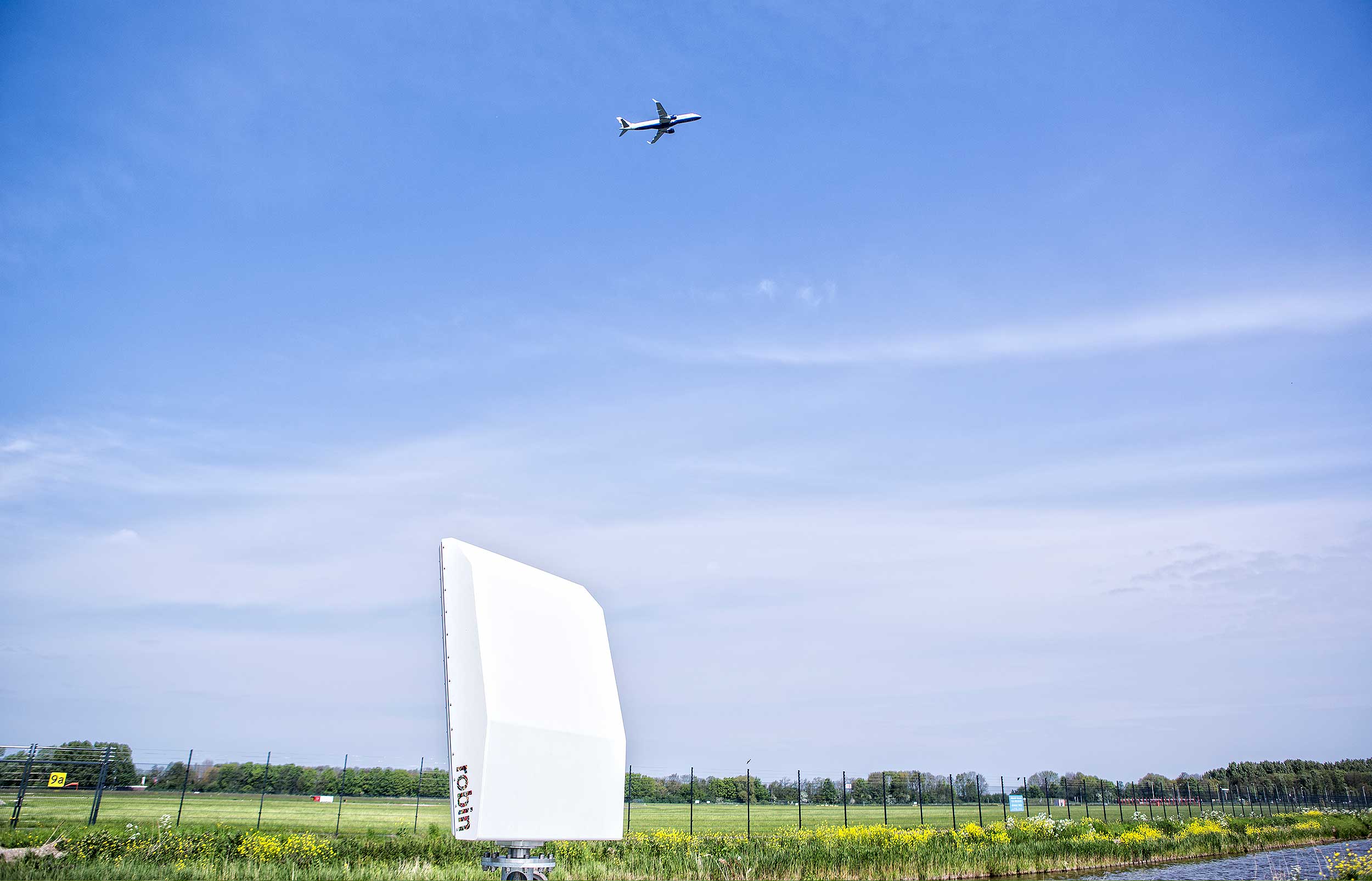

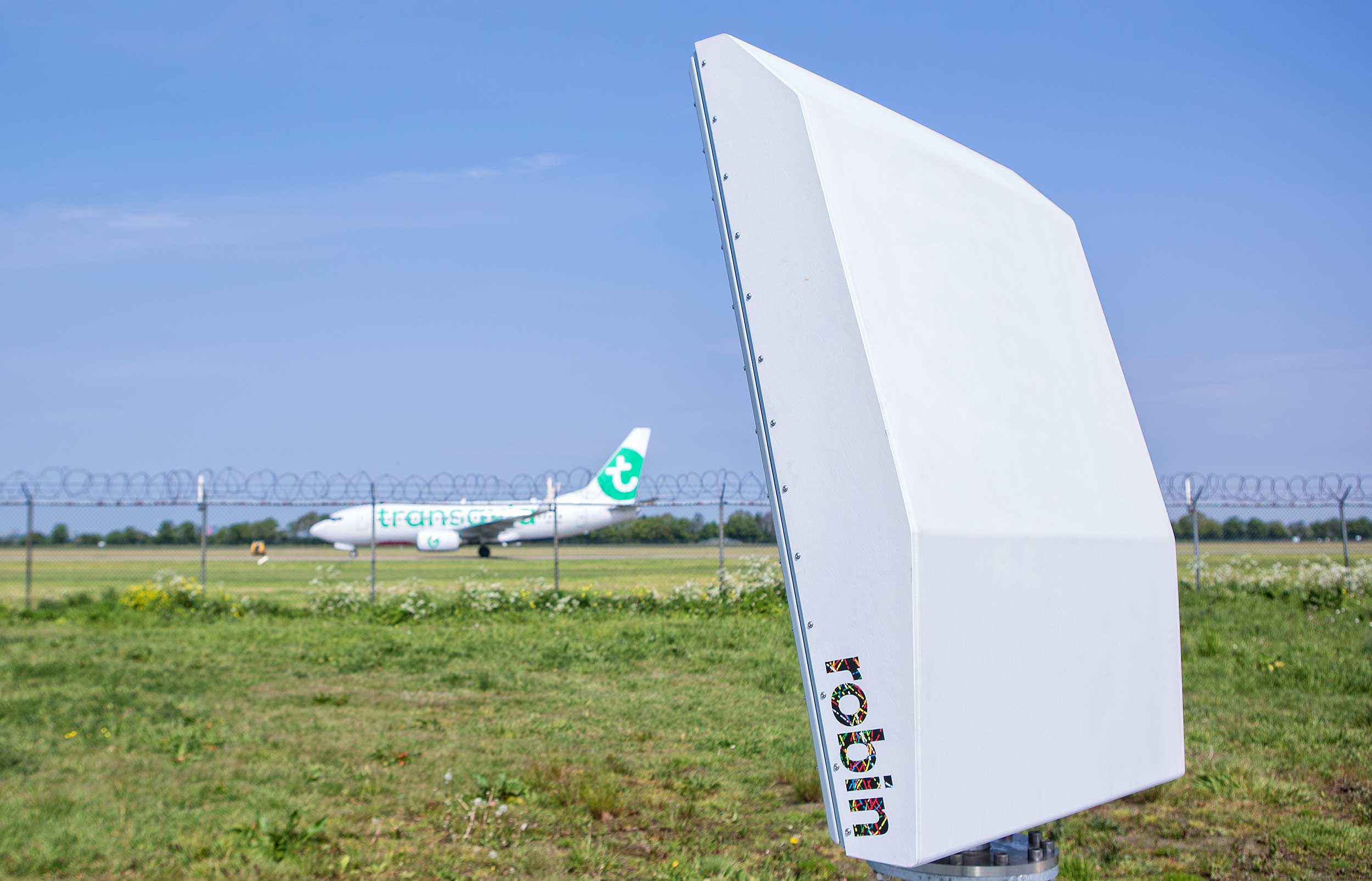

MAX® |
| FMCW |
| X-Band |
| Real-time position and track in full 3D – in all directions all of the time |
| 360-degree coverage |
| 20W power output |
| 1.0s track update rate |
| 15km instrumented range |

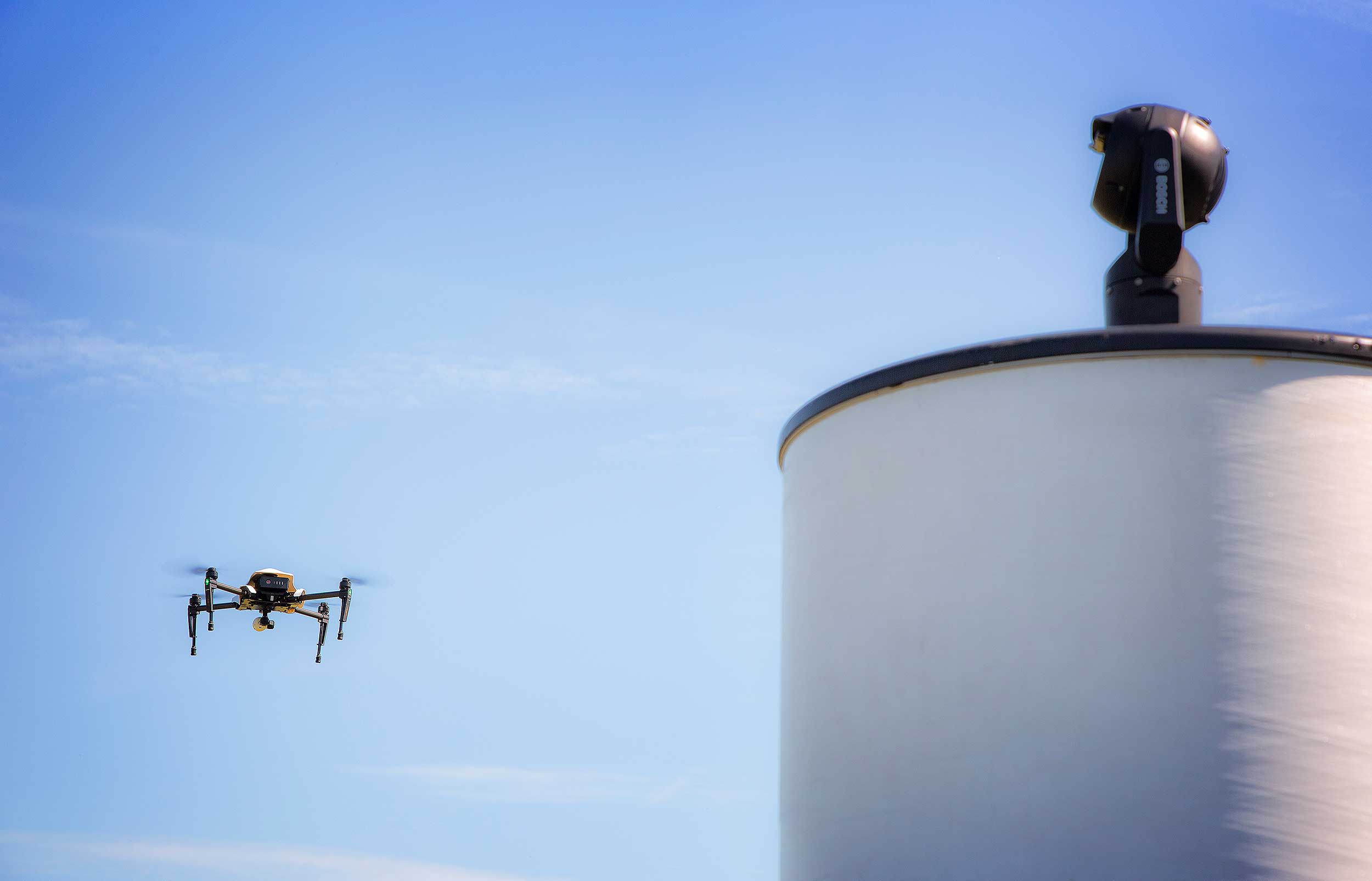

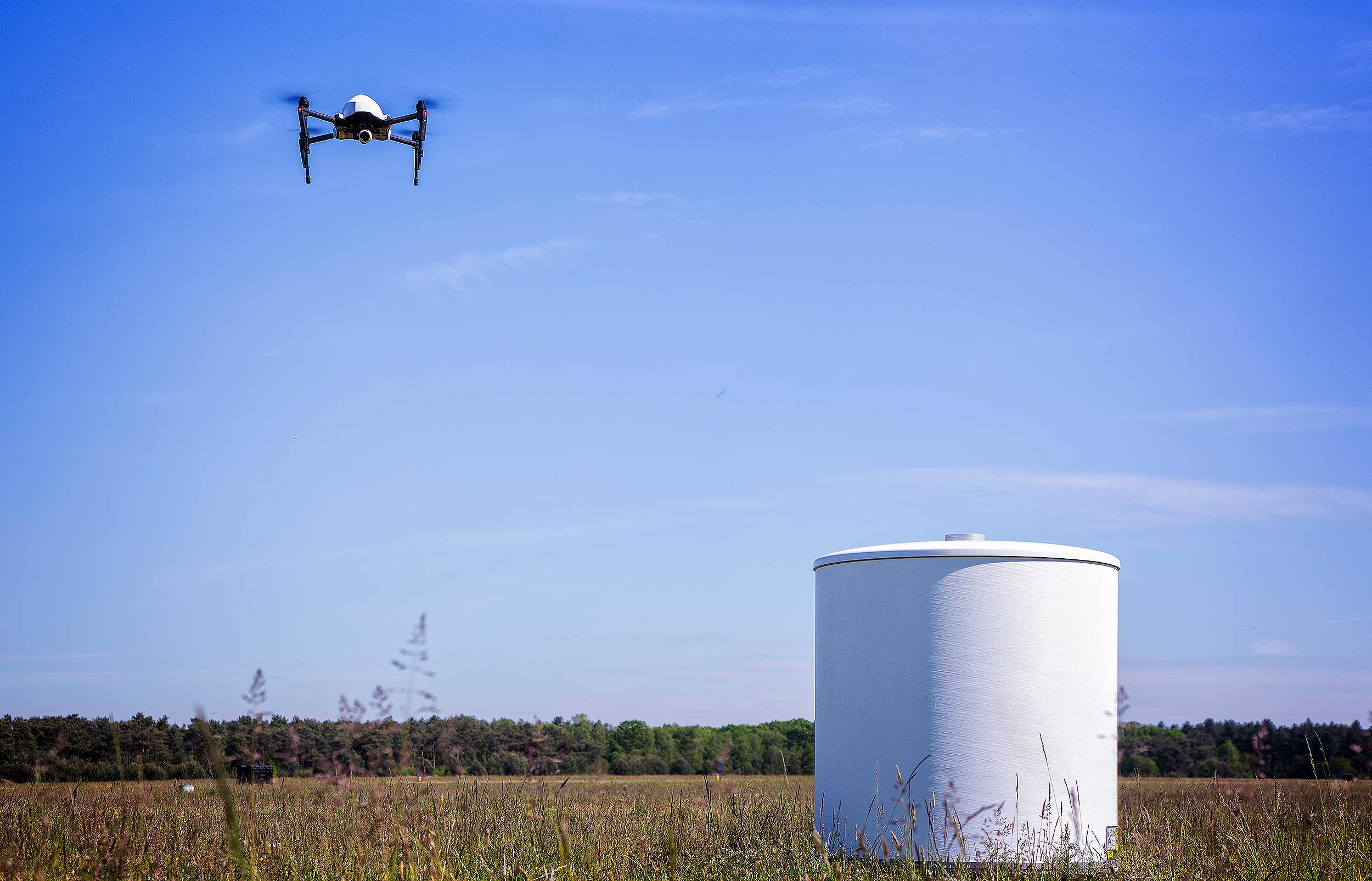

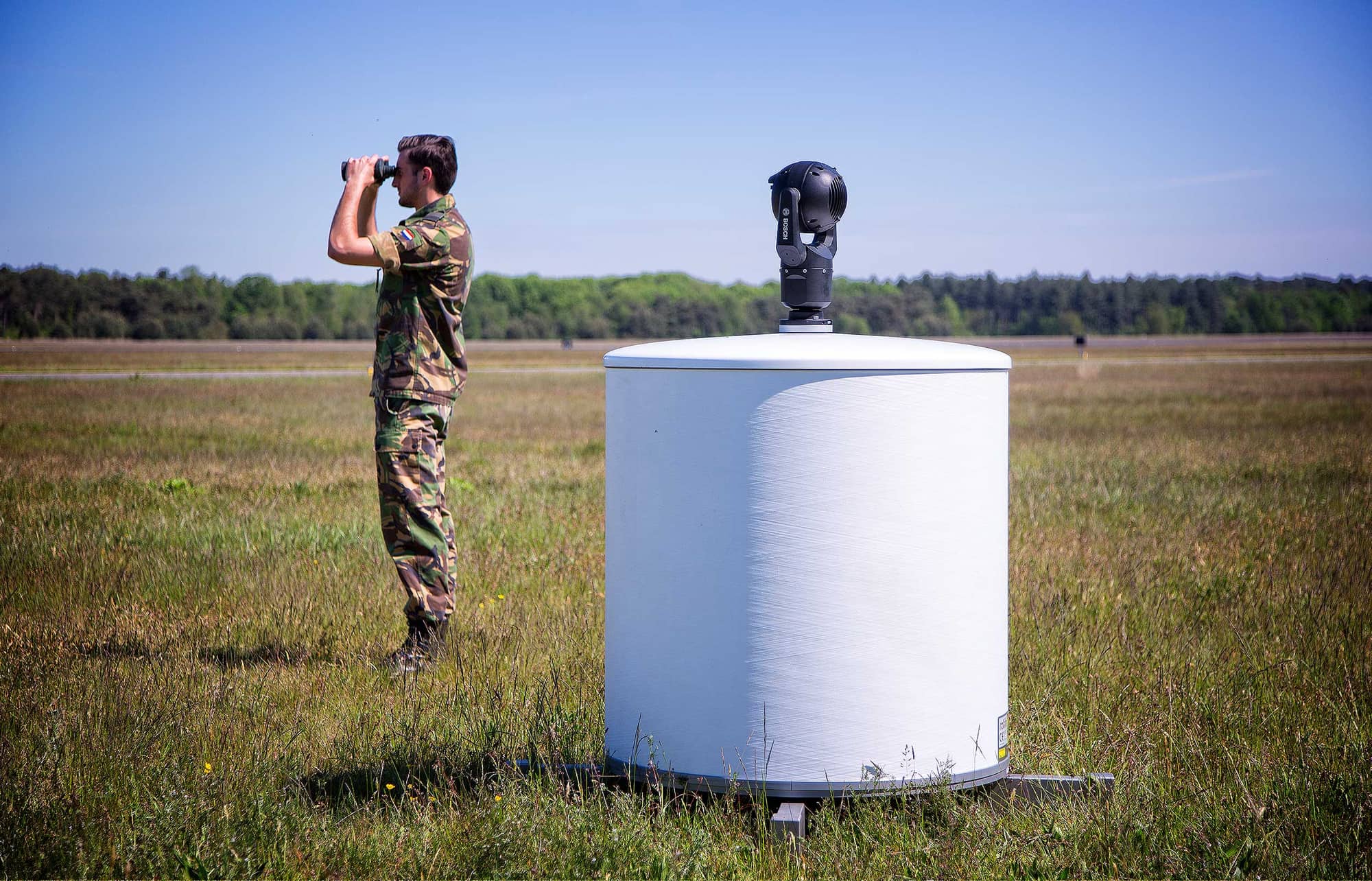

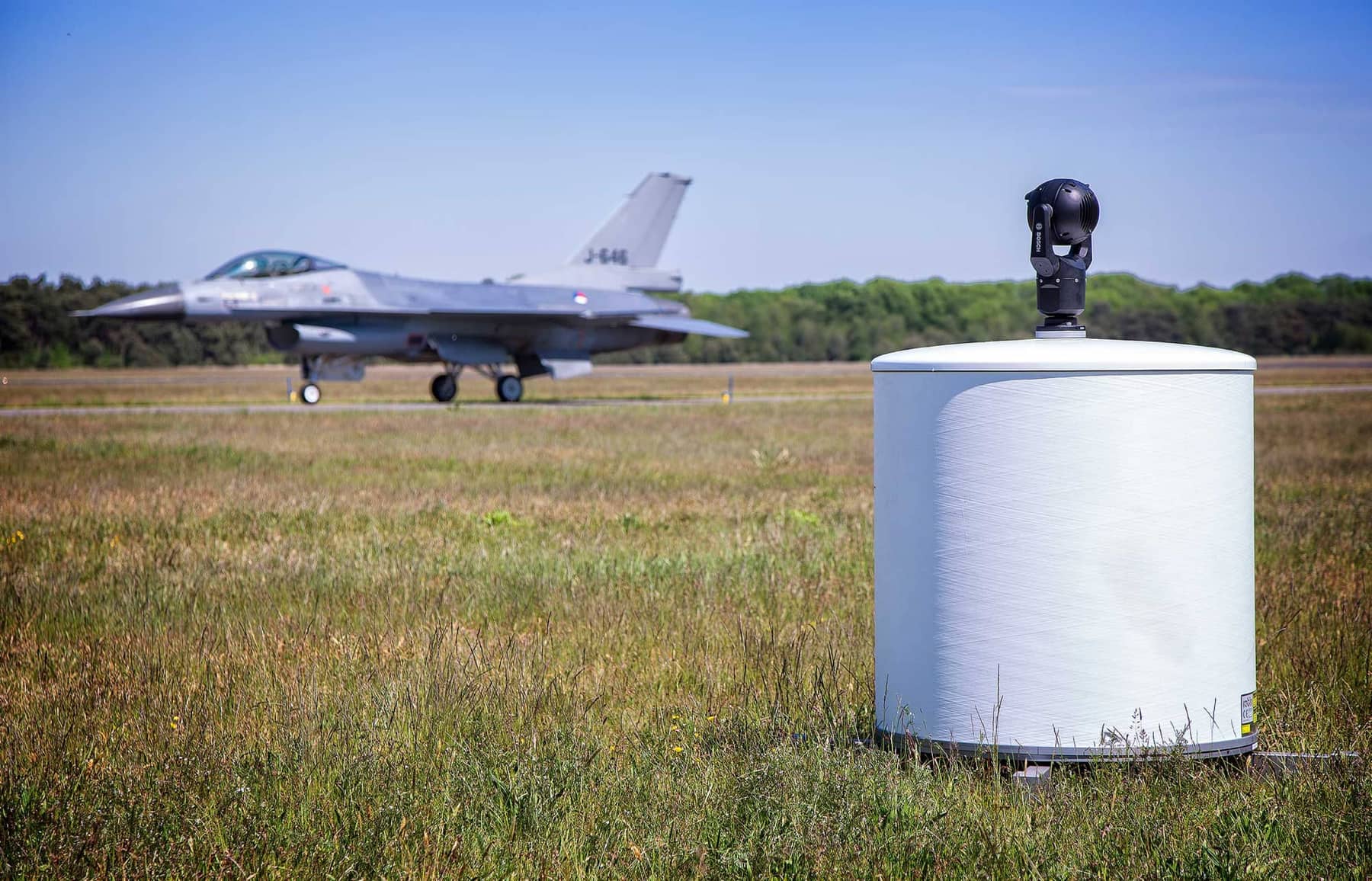

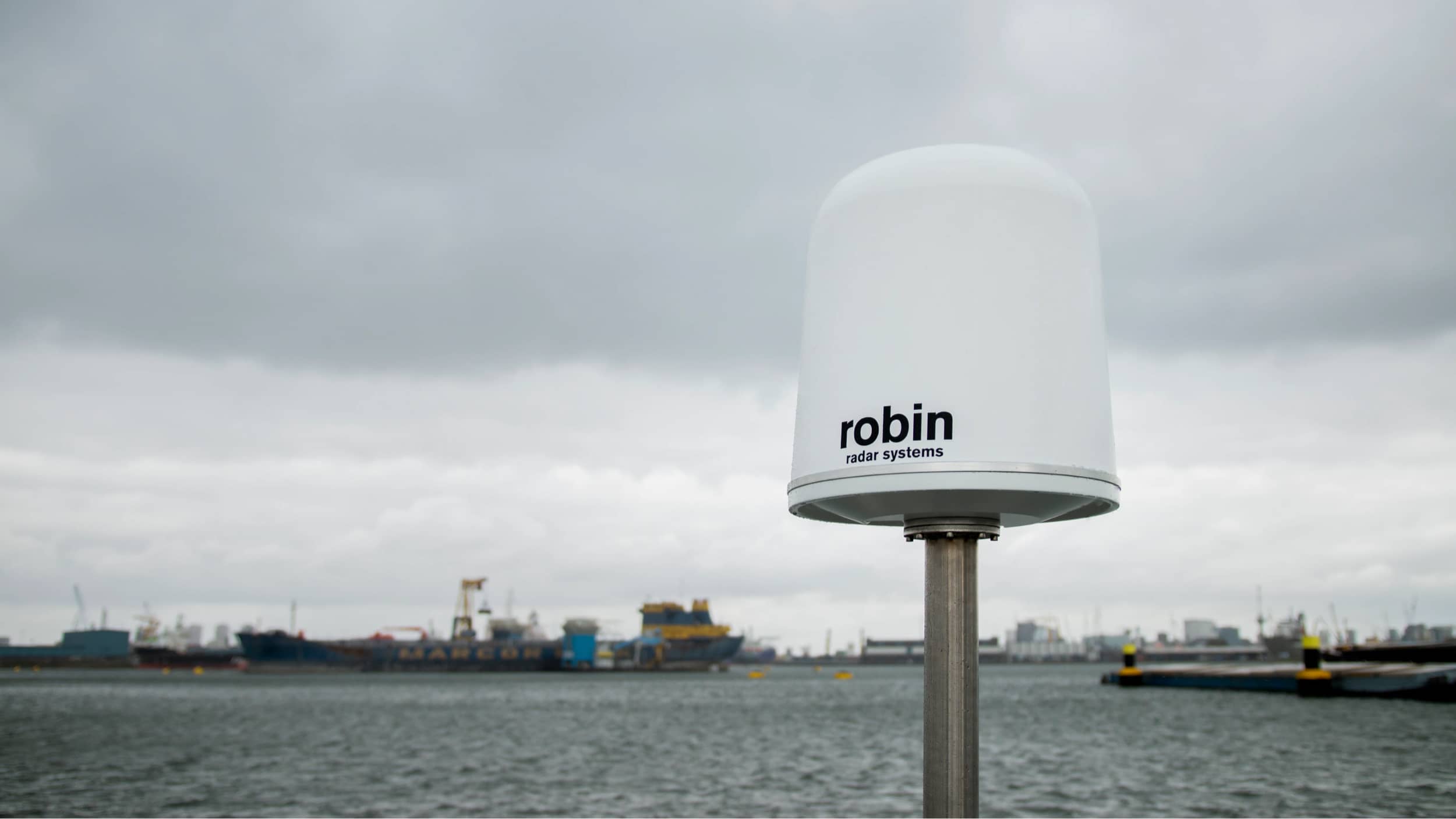

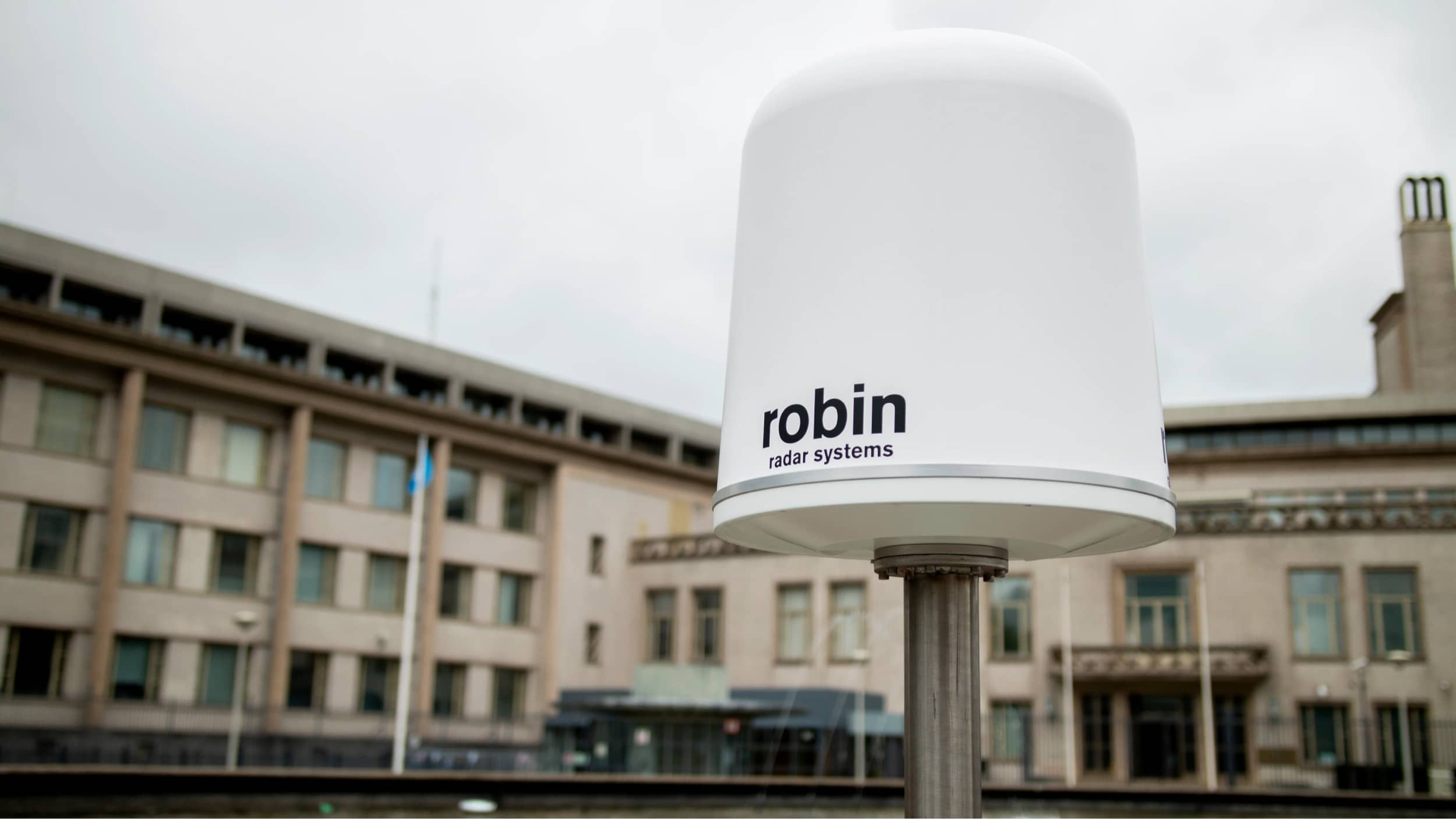

ELVIRA® |
| FMCW |
| X-Band |
| Real-time position and track in 2D |
| 360-degree coverage |
| 4W power output |
| 1.3s track update rate |
| 5km instrumented range |
2D Lite |
| Pulse |
| S-Band 3050MHz |
| Real-time position and track in 2D |
| 30kW peak power output |
| 1.3s track update rate |
| 8km instrumented range |
3D Fixed |
| Pulse |
| S-Band 3050MHz plus X-Band 9410MHz |
| Real-time position and track in (semi) 3D – in a fixed direction |
| 60kW peak power output (S-Band) 25kW peak power output (X-Band) |
| 1.3s track update rate |
| 10km instrumented range (Horizontal) 6km instrumented range (Vertical) |
3D Flex |
| Pulse + FMCW |
| S-Band 3050MHz plus X-Band 9650MHz |
| Real-time position and track in (semi) 3D – in a configurable direction |
| 60kW peak power output (S-Band) 400mW average power output (X-Band) |
| 1.3s track update rate (Horizontal) - 3.0s track update rate (Vertical) |
| 10km instrumented range (Horizontal) - 4.5km instrumented rage (Vertical) |
Max® |
| FMCW |
| X-Band 9650MHz |
| Real-time position and track in full 3D – in all directions all of the time |
| 20W average power output |
| 1.0s track update rate |
| 15km instrumented range |
2D Lite |
| Pulse |
| S-Band 3050MHz |
| Real-time position and track in 2D |
| 30kW peak power output |
| 1.3s track update rate |
| 8km instrumented range |
3D Fixed |
| Pulse |
| S-Band 3050MHz plus X-Band 9410MHz |
| Real-time position and track in (semi) 3D – in a fixed direction |
| 60kW peak power output (S-Band) 25kW peak power output (X-Band) |
| 1.3s track update rate |
| 10km instrumented range (Horizontal) 6km instrumented range (Vertical) |
3D Flex |
| Pulse + FMCW |
| S-Band 3050MHz plus X-Band 9650MHz |
| Real-time position and track in (semi) 3D – in a configurable direction |
| 60kW peak power output (S-Band) 400mW average power output (X-Band) |
| 1.3s track update rate (Horizontal) - 3.0s track update rate (Vertical) |
| 10km instrumented range (Horizontal) - 4.5km instrumented rage (Vertical) |
Max® |
| FMCW |
| X-Band 9650MHz |
| Real-time position and track in full 3D – in all directions all of the time |
| 20W average power output |
| 1.0s track update rate |
| 15km instrumented range |

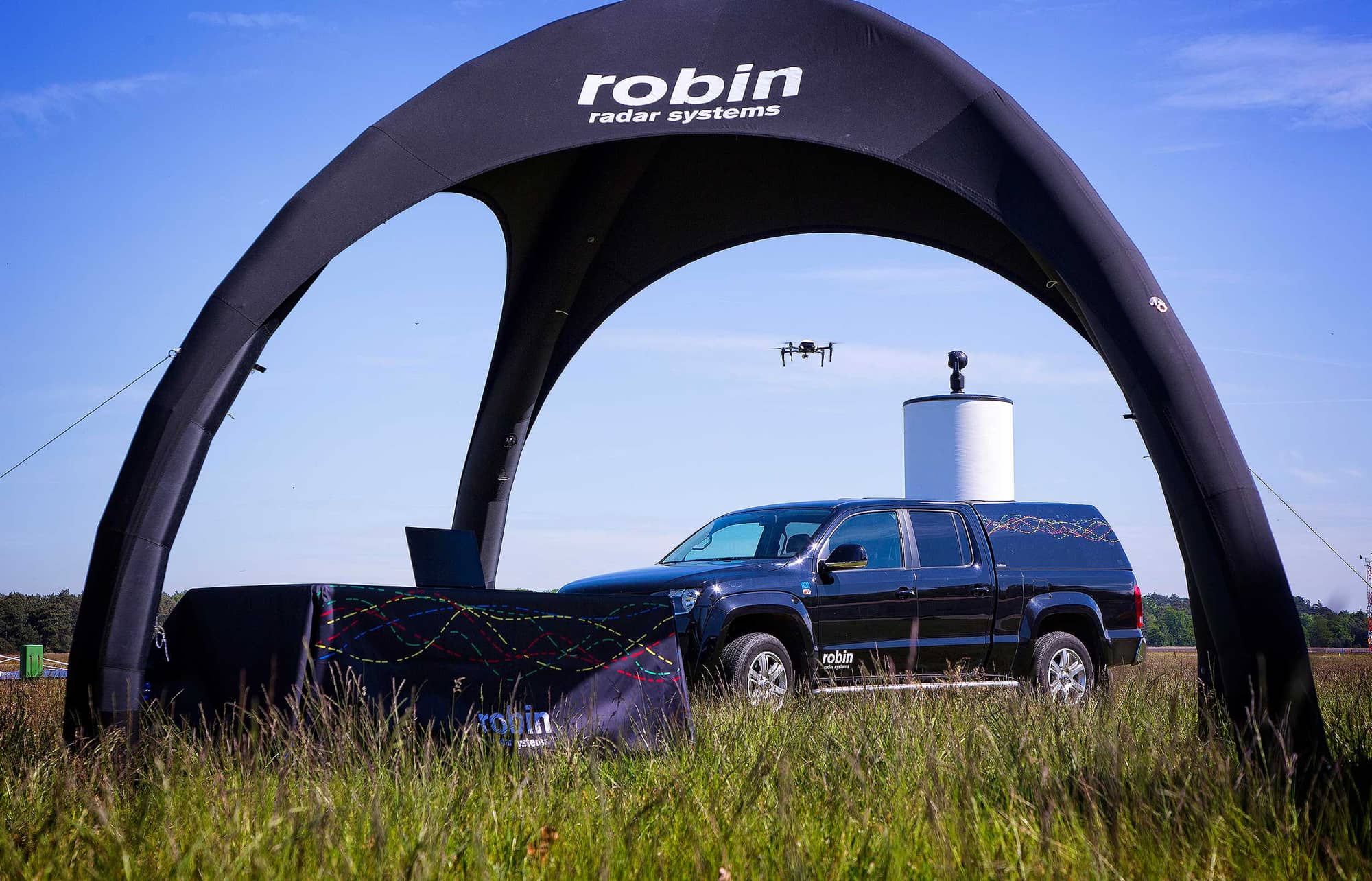

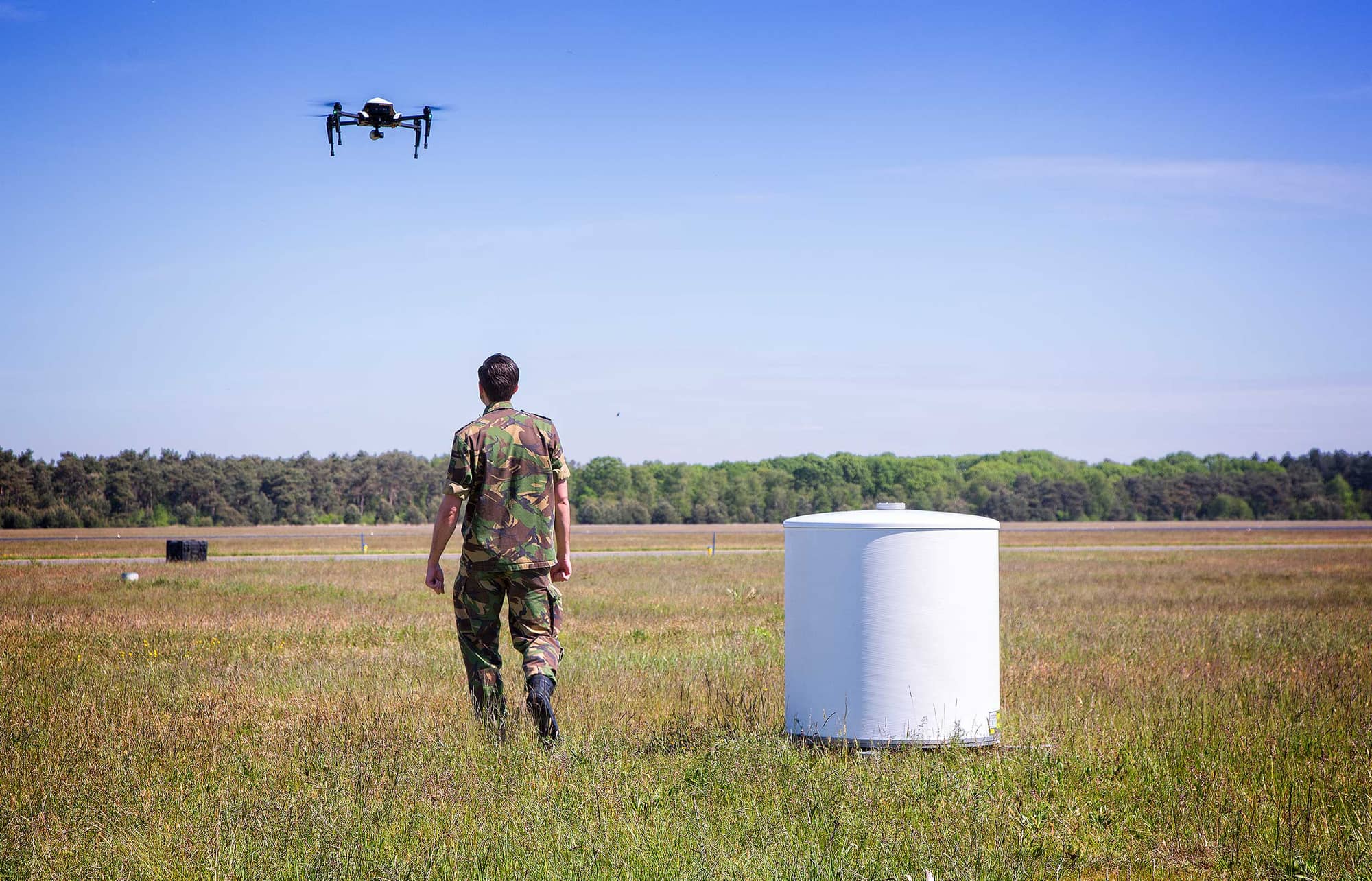

ELVIRA® |
| FMCW |
| X-Band 9650MHz |
| Real-time position and track in 2D |
| 4W average power output |
| 1.3s track update rate |
| 5km instrumented range |
