DETECT AND TRACK BIRDS IN 3D (CONFIGURABLE DIRECTION)
3D Flex
3D Flex
If you need a more flexible radar, which can be configured for 3D tracking in any desired direction, 3D Flex is the radar for you.

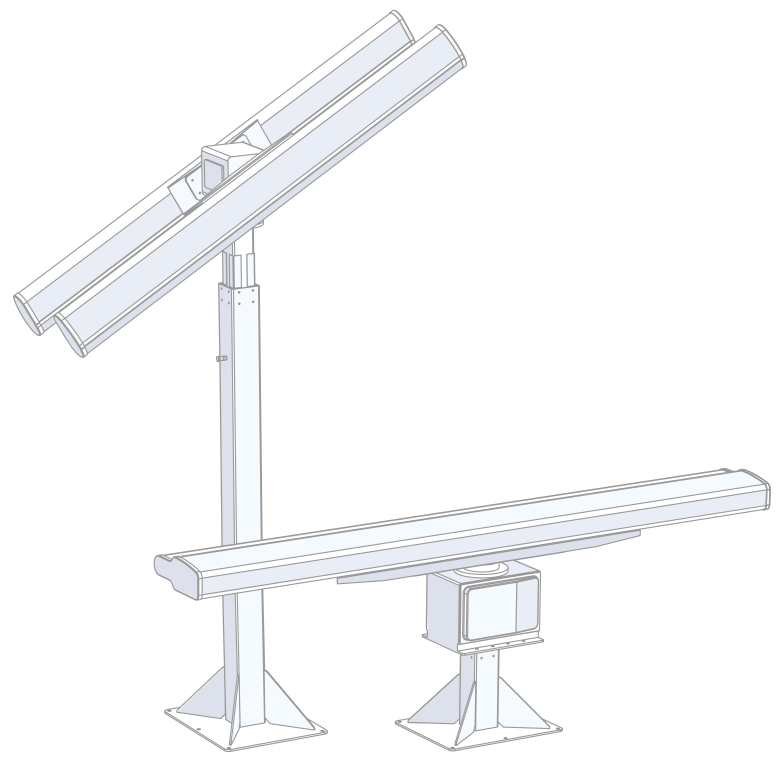

ROBIN's 3D Flex system consists of a horizontal S-band radar, combined with a flexible Frequency Modulated Continuous Wave (FMCW) radar. The horizontal S-band radar identifies the presence and number of birds in time – including their location, height, direction, speed and route – up to 10 kilometres away, all around, day and night.
The FMCW radar has three modes:
'Staring' mode, in which the radar points in one direction to identify targets up to 6 km away.
'Automatic Acquisition' mode, where the vertical X-Band radar slews in azimuth to the cue of the horizontal S-Band radar, based on the objects with highest RCS. In this way much of the bird tracks (in all directions) will be assigned elevation data.
The ROBIN 3D Flex offers a lot of functionality, including measuring the wing beat pattern and frequency of a single target. It provides valuable input for distinction between species.
This configuration is used both in civil aviation for wildlife management and in bird strike prevention at airports, as well as for monitoring birds in offshore wind farms and for field research.
Horizontal Antenna | Vertical Antenna | |
Technology | Pulse | FMCW |
Frequency | S-Band | X-Band |
Power Output | 60kW | 4W |
Rotation / Scan Speed | 45rpm / 1.3s | 20rpm / 3s |
Instrumented Range | 10km | 6km |
Azimuth Coverage | 360-degrees | 20-degrees |
Elevation Coverage | 12.5-degrees | 360-degrees |
Antenna Dimensions (WxDxH) | 3765 x 575 x 710 mm | 2550 x 663 x 375 mm |
Upmast Weight | 133kg | 78kg |
